SRT / SSRT Flanged Nut Large Journal

SRT/SSRT series
Standardized Rolled Ball Screws with Integrated end-journal

For production reason, Rolled Ball Screws are normally necessary to have smaller end-journal, but as ABSSAC have adopted special technology, it enables fixed end-journal bigger than Shaft diameter alike solid Ball Screws. This technology enables stable and more flexible on end-journal design.

Features

Design flexibility and wide use of Bearings on end-journal.
Compatible end-journal to Precision Ball Screws.
No need to insert or press fit collar as Bearing shoulder.
Quick delivery due to unfinished end-journal stock.
Stainless Rolled Ball Screws are also available.

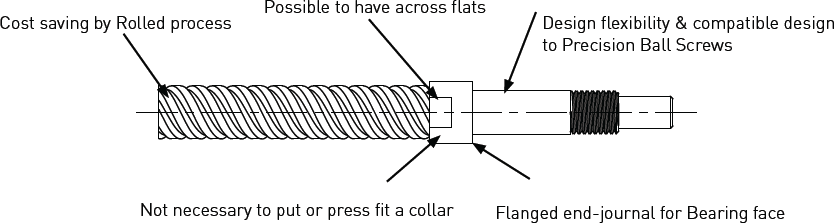

SRT Diagram 1

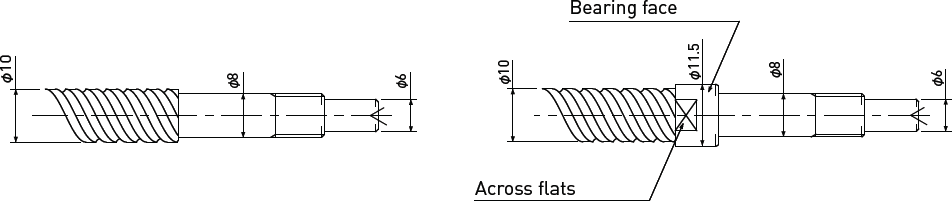

Comparison with current model

Shaft nominal diameter : ∅10mm

SRT Diagram 2

Current model design

New model design

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Combination of Shaft nominal dia. & Lead

Unit : mm
	Lead
Shaft dia.	1	2	2.5	4	5	6	8	10	12	15	20
4	•	•
5				•
6	•	•				•		•
8	•	•	•		•		•		•
10		•			•			•		•	•
12		•						•

Accuracy Grade & Axial play

The grade of SRT/SSRT series (Standardized Rolled & Stainless Rolled Ball Screws with Integrated endjournal) are Ct7 or Ct10(JIS B-1192). According to accuracy grade, Axial play 0.020mm or less (Ct7) and 0.050mm or less (Ct10) are in stock.

Material & Surface hardness

Materials and Surface hardness of SR series (Standardized Rolled Ball Screws) and SSR series (Standardized Stainless Rolled Ball Screws) are as follows.

Products	Material of thread area	Heat treatment	Surface hardness
Rolled Ball Screws (SRT series)	Shaft : SCM415	Carburizing and Quenching	HRC58 or more
Rolled Ball Screws (SRT series)	Nut : SCM415	Carburizing and Quenching	HRC58 or more
Stainless Rolled Ball Screws (SSRT series)	Shaft : SUS440C	Induction hardening	HRC55 or more
Stainless Rolled Ball Screws (SSRT series)	Nut : SUS440C	Vacuum hardening	HRC55 or more

Lubrication

SRT/SSRT series (Standardized Rolled & Stainless Rolled Ball Screws with Integrated end-journal) will be supplied with anti-rust oil. This oil is not lubricant, when Ball Screw operates, lubricant should be applied. If there is no specific instruction, ABSSAC would recommend our original Grease (MSG No.2) as standard lubricant. Please feel free to contact us.

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Model number notation

SRT Diagram 3

Rolled Ball Screws Series No.
SRT : Rolled Ball Screws with Integrated end-journal
SSRT : Stainless Rolled Ball Screws with Integrated end-journal
Screw Shaft nominal diameter(mm)
Lead(mm)
Screw thread length(mm)
(Specify in 1mm units after end-journal machining)
Thread direction(R=Right-hand)
Screw Shaft total length(mm)
(Specify in 1mm units)
Accuracy grade(C7 or C10)
Shaft end-journal profile
(Refer to Fig. A-24 below : A-type,B-type,C-type)
Anti-rust oil or Lubricant
0 : ABSSAC grease(MSG No.2)
1 : Anti-rust oi(l Non Ruster PZ2)
2 : Multemp PS2 grease
3 : Other
Nut Flange direction (Refer to Fig. A-25 below)

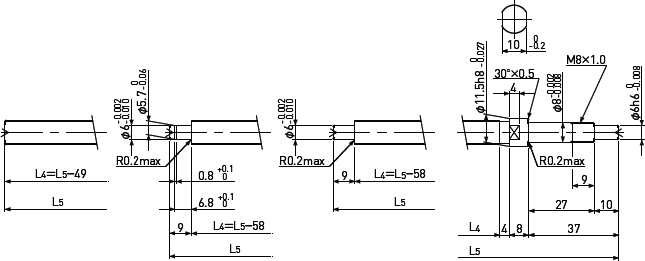

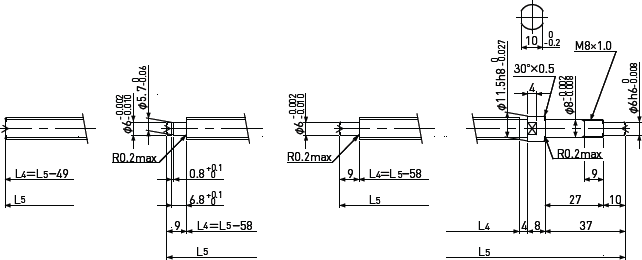

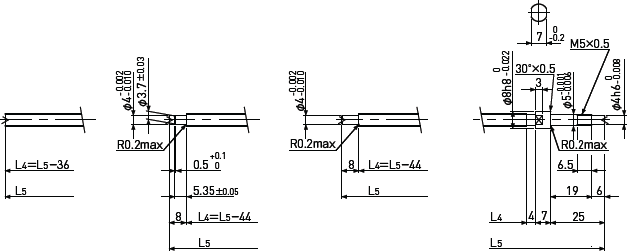

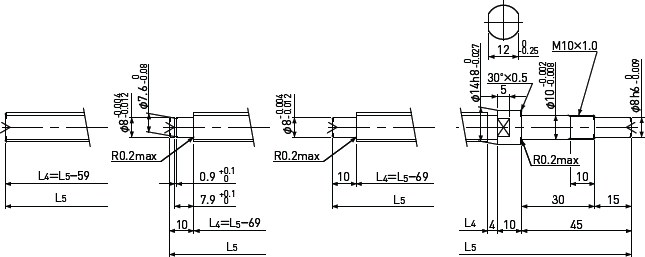

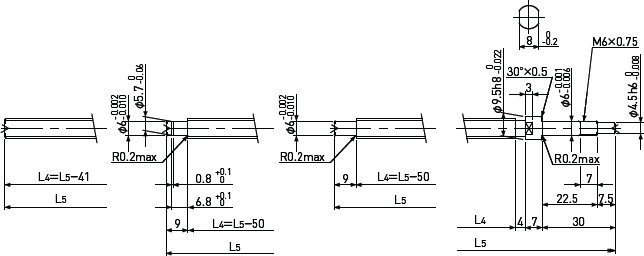

Fig. A-24 : Shaft end-journal profile

PSRT Diagram 5

Fig. A-25 : Nut Flange direction

PSRT Diagram 6

Note 1): The detail of end-journal dimension for each size is shown from next page.
Note 2): ABSSAC does not make additional Nut machining.
Note 3): The specification is subject to change without notice.
Note 4): If the other configuration except (A,B,C) is requested, please contact ABSSAC.

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0401	Shaft dia. ∅4	Lead 1mm	Ct7&Ct10

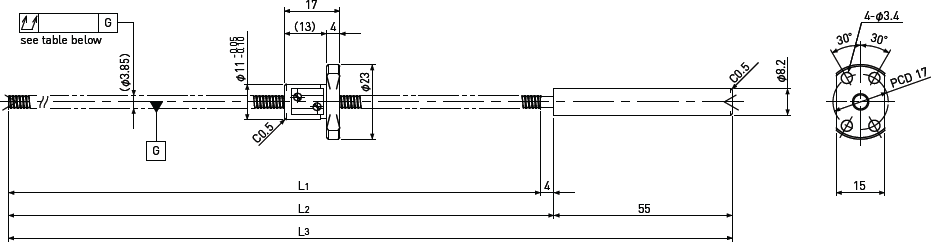

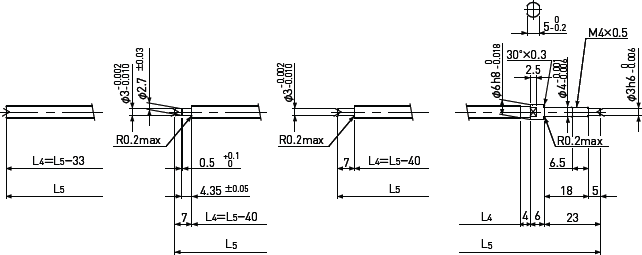

SRT Diagram 4A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅0.8	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅3.3
Number of circuit		3.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	SUP03-S
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK4

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0401-096R155C7	75	Ct7	96	100	155	±0.03	0.05	0.080	~0.020	-	560	790
SRT0401-216R275C7	195	Ct7	216	220	275	±0.07	0.05	0.120	~0.020
SRT0401-096R155C10	75	Ct10	96	100	155	±0.13	0.21	0.160	~0.050
SRT0401-216R275C10	195	Ct10	216	220	275	±0.30	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0402	Shaft dia. ∅4	Lead 2mm	Ct7&Ct10

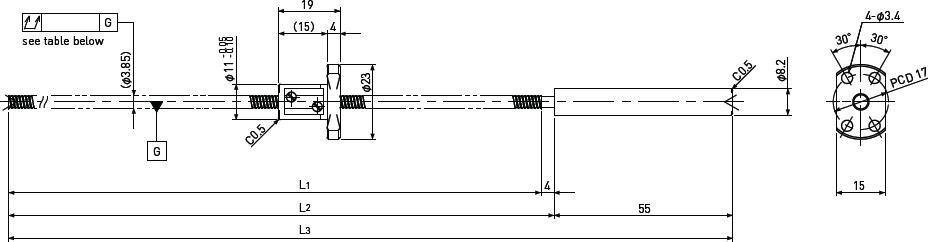

SRT Diagram 5A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅0.8	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅3.3
Number of circuit		2.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	SUP03-S
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK4

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0402-096R155C7	75	Ct7	96	100	155	±0.03	0.05	0.080	~0.020	-	420	570
SRT0402-216R275C7	195	Ct7	216	220	275	±0.07	0.05	0.120	~0.020
SRT0402-096R155C10	75	Ct10	96	100	155	±0.13	0.21	0.160	~0.050
SRT0402-216R275C10	195	Ct10	216	220	275	±0.30	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0504	Shaft dia. ∅5	Lead 4mm	Ct7&Ct10

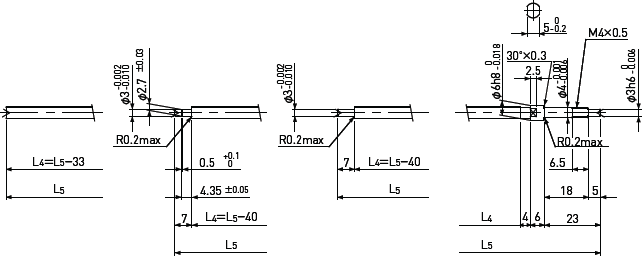

SRT Diagram 6A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅0.8	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅4.3
Number of circuit		2.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	SUP03-S
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK4

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0504-096R155C7	70	Ct7	96	100	155	±0.03	0.05	0.080	~0.020	-	470	720
SRT0504-216R275C7	190	Ct7	216	220	275	±0.07	0.05	0.120	~0.020
SRT0504-096R155C10	70	Ct10	96	100	155	±0.13	0.21	0.160	~0.050
SRT0504-216R275C10	190	Ct10	216	220	275	±0.30	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0601	Shaft dia. ∅6	Lead 1mm	Ct7&Ct10

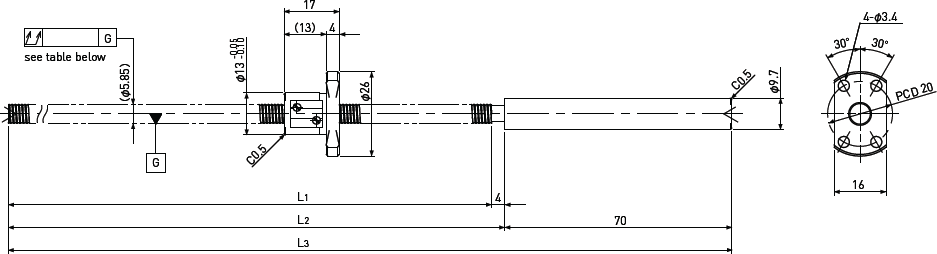

SRT Diagram 7A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅0.8	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅3.3
Number of circuit		3.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	SUP04-S
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK5

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0601-146R220C7	125	Ct7	146	150	220	±0.05	0.05	0.080	~0.020	-	680	1200
SRT0601-261R335C7	240	Ct7	261	265	335	±0.09	0.05	0.120	~0.020
SRT0601-146R220C10	125	Ct10	146	150	220	±0.20	0.21	0.160	~0.050
SRT0601-261R335C10	240	Ct10	261	265	335	±0.36	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0602	Shaft dia. ∅6	Lead 2mm	Ct7&Ct10

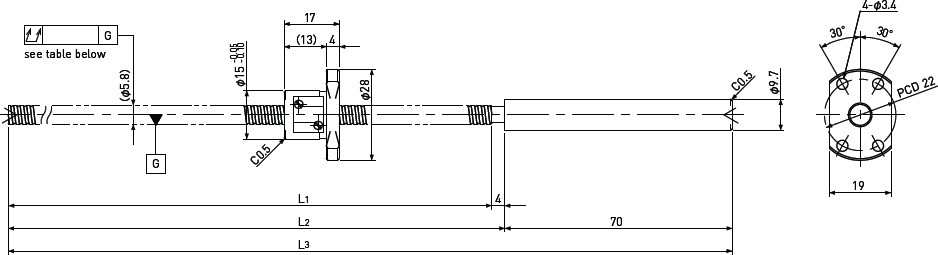

SRT Diagram 8A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.0	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅5.1
Number of circuit		2.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	SUP04-S
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK5

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0602-146R220C7	125	Ct7	146	150	220	±0.05	0.05	0.080	~0.020	-	750	1200
SRT0602-261R335C7	240	Ct7	261	265	335	±0.09	0.05	0.120	~0.020
SRT0602-146R220C10	125	Ct10	146	150	220	±0.20	0.21	0.160	~0.050
SRT0602-261R335C10	240	Ct10	261	265	335	±0.36	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0606	Shaft dia. ∅6	Lead 6mm	Ct7&Ct10

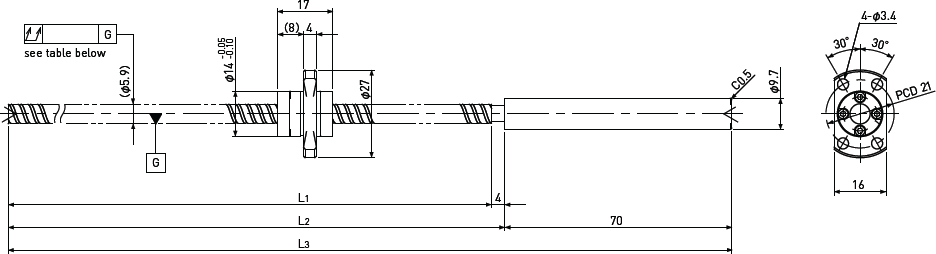

SRT Diagram 9A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.0	A-type B-type C-type
Number of thread		2
Thread direction		Right
Shaft root dia.		∅5.2
Number of circuit		1.6×2
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	SUP04-S
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK5

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0606-146R220C7	125	Ct7	146	150	220	±0.05	0.05	0.080	~0.020	-	870	1450
SRT0606-261R335C7	240	Ct7	261	265	335	±0.09	0.05	0.120	~0.020
SRT0606-146R220C10	125	Ct10	146	150	220	±0.20	0.21	0.160	~0.050
SRT0606-261R335C10	240	Ct10	261	265	335	±0.36	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0610	Shaft dia. ∅6	Lead 10mm	Ct7&Ct10

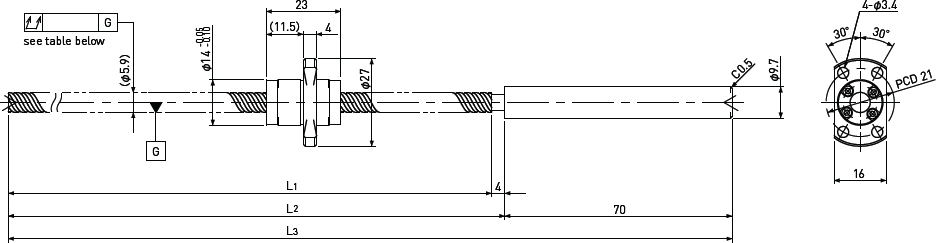

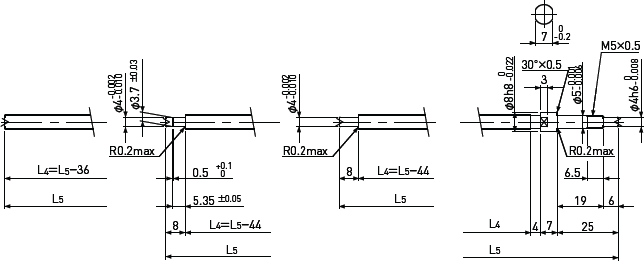

SRT Diagram 10A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.2	A-type B-type C-type
Number of thread		2
Thread direction		Right
Shaft root dia.		∅5.0
Number of circuit		1.2×2
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	SUP04-S
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK5

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0610-146R220C7	120	Ct7	146	150	220	±0.05	0.05	0.080	~0.020	-	950	1600
SRT0610-261R335C7	235	Ct7	261	265	335	±0.09	0.05	0.120	~0.020
SRT0610-146R220C10	120	Ct10	146	150	220	±0.20	0.21	0.160	~0.050
SRT0610-261R335C10	235	Ct10	261	265	335	±0.36	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0801	Shaft dia. ∅8	Lead 1mm	Ct7&Ct10

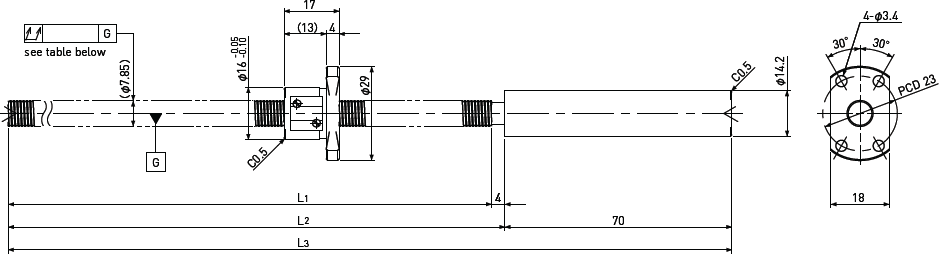

SRT Diagram 11A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅0.8	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅7.3
Number of circuit		3.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF6
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK6

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0801-196R270C7	175	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	780	1650
SRT0801-356R430C7	335	Ct7	356	360	430	±0.12	0.05	0.120	~0.020
SRT0801-196R270C10	175	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT0801-356R430C10	335	Ct10	356	360	430	±0.49	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0802	Shaft dia. ∅8	Lead 2mm	Ct7&Ct10

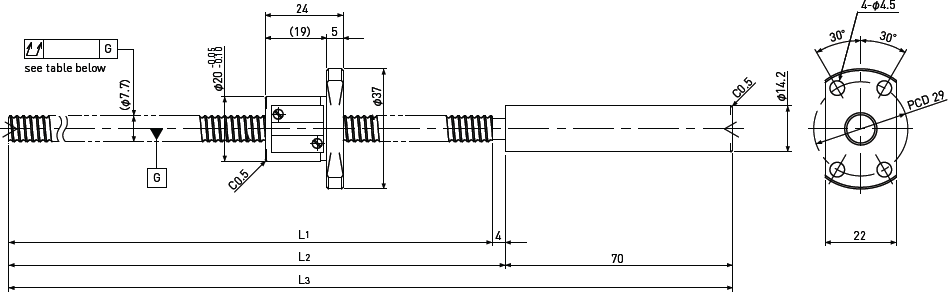

SRT Diagram 12A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.5875	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅6.6
Number of circuit		3.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF6
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK6

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0802-196R270C7	170	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	2400	4100
SRT0802-356R430C7	330	Ct7	356	360	430	±0.12	0.05	0.120	~0.020
SRT0802-196R270C10	170	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT0802-356R430C10	330	Ct10	356	360	430	±0.49	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0802.5	Shaft dia. ∅8	Lead 2.5mm	Ct7&Ct10

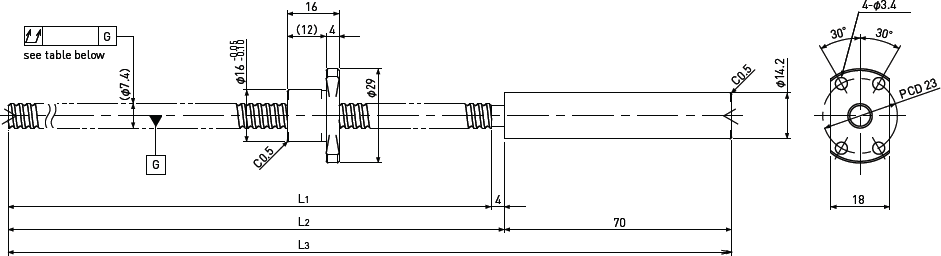

SRT Diagram 13A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.5875	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅6.3
Number of circuit		2.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF6
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK6

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0802.5-196R270C7	180	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	1850	3000
SRT0802.5-356R430C7	340	Ct7	356	360	430	±0.12	0.05	0.120	~0.020
SRT0802.5-196R270C10	180	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT0802.5-356R430C10	340	Ct10	356	360	430	±0.49	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0805	Shaft dia. ∅8	Lead 5mm	Ct7&Ct10

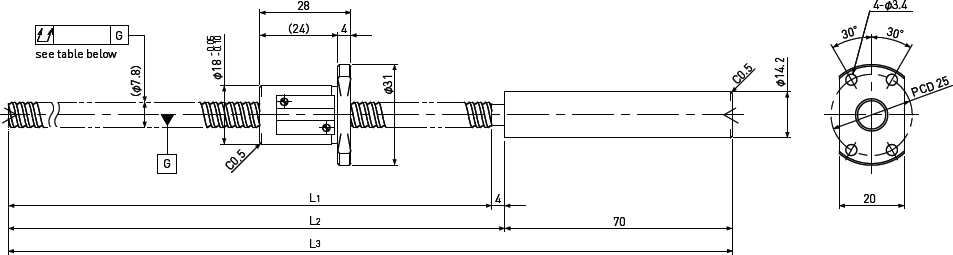

SRT Diagram 14A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.5875	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅6.6
Number of circuit		2.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF6
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK6

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0805-196R270C7	165	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	1850	3000
SRT0805-356R430C7	325	Ct7	356	360	430	±0.12	0.05	0.120	~0.020
SRT0805-196R270C10	165	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT0805-356R430C10	325	Ct10	356	360	430	±0.49	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0808	Shaft dia. ∅8	Lead 8mm	Ct7&Ct10

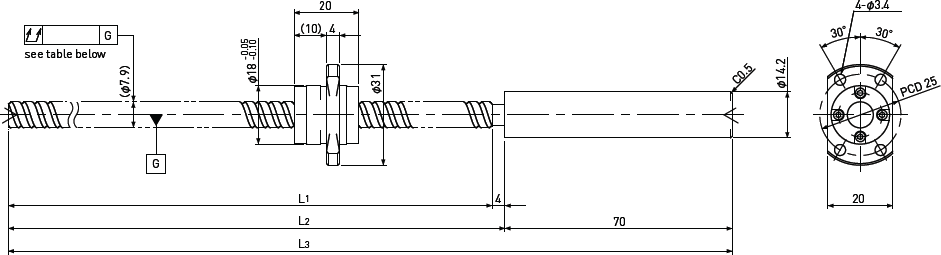

SRT Diagram 15A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.5875	A-type B-type C-type
Number of thread		2
Thread direction		Right
Shaft root dia.		∅6.7
Number of circuit		1.6×2
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF6
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK6

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0808-196R270C7	175	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	2200	3800
SRT0808-356R430C7	335	Ct7	356	360	430	±0.12	0.05	0.120	~0.020
SRT0808-196R270C10	175	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT0808-356R430C10	335	Ct10	356	360	430	±0.49	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT0812	Shaft dia. ∅8	Lead 12mm	Ct7&Ct10

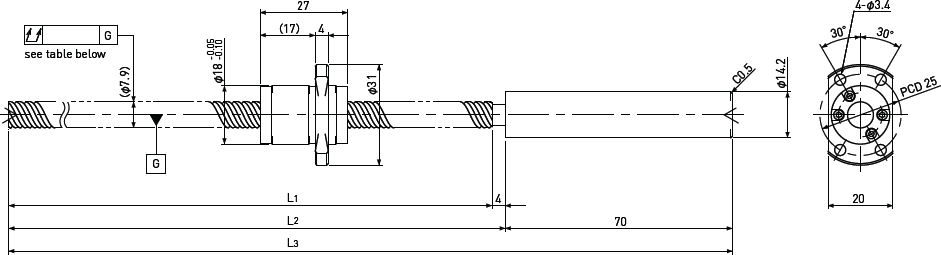

SRT Diagram 16A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.5875	A-type B-type C-type
Number of thread		2
Thread direction		Right
Shaft root dia.		∅6.7
Number of circuit		1.6×2
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF6
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK6

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT0812-196R270C7	165	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	2200	4000
SRT0812-356R430C7	325	Ct7	356	360	430	±0.12	0.05	0.120	~0.020
SRT0812-196R270C10	165	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT0812-356R430C10	325	Ct10	356	360	430	±0.49	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT1002	Shaft dia. ∅10	Lead 2mm	Ct7&Ct10

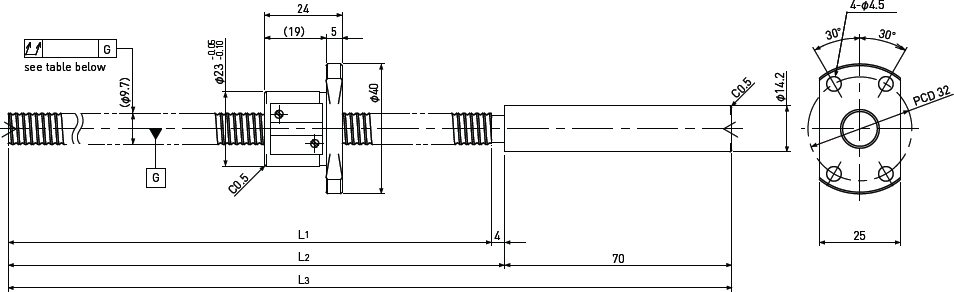

SRT Diagram 17A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.5875	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅8.6
Number of circuit		3.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF8
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK8

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT1002-196R270C7	170	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	2700	5300
SRT1002-396R470C7	370	Ct7	396	400	470	±0.13	0.05	0.120	~0.020
SRT1002-196R270C10	170	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT1002-396R470C10	370	Ct10	396	400	470	±0.55	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT1005	Shaft dia. ∅10	Lead 5mm	Ct7&Ct10

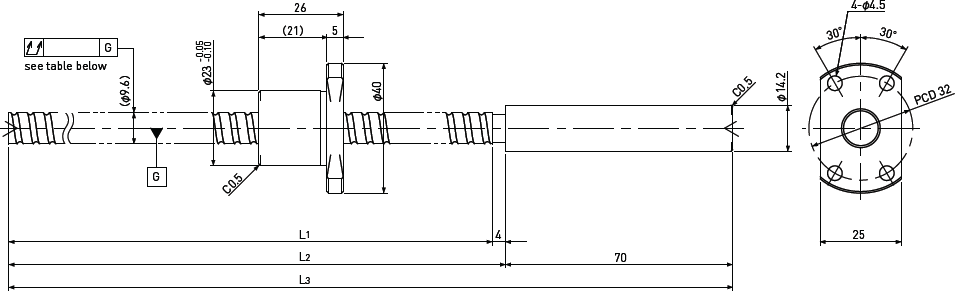

SRT Diagram 18A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅2.0	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅8.2
Number of circuit		2.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF8
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK8

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT1005-196R270C7	170	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	3000	5200
SRT1005-396R470C7	370	Ct7	396	400	470	±0.13	0.05	0.120	~0.020
SRT1005-196R270C10	170	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT1005-396R470C10	370	Ct10	396	400	470	±0.55	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT1010	Shaft dia. ∅10	Lead 10mm	Ct7&Ct10

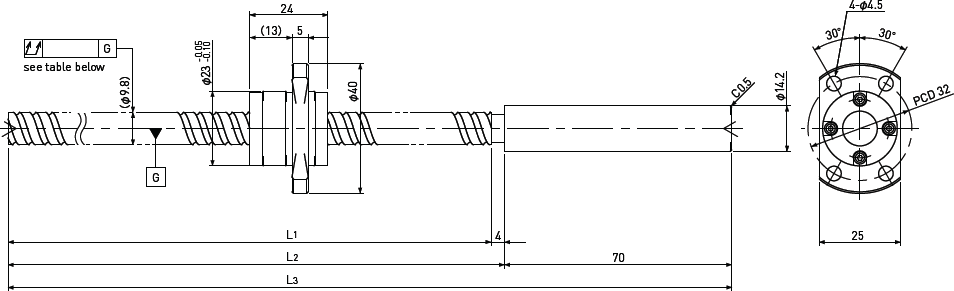

SRT Diagram 19A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅2.0	A-type B-type C-type
Number of thread		2
Thread direction		Right
Shaft root dia.		∅8.4
Number of circuit		1.6×2
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF8
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK8

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT1010-196R270C7	170	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	3300	5900
SRT1010-396R470C7	370	Ct7	396	400	470	±0.13	0.05	0.120	~0.020
SRT1010-196R270C10	170	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT1010-396R470C10	370	Ct10	396	400	470	±0.55	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT1015	Shaft dia. ∅10	Lead 15mm	Ct7&Ct10

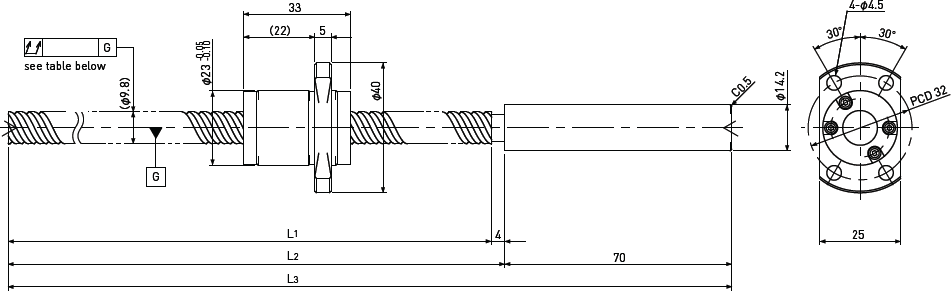

SRT Diagram 20A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅2.0	A-type B-type C-type
Number of thread		2
Thread direction		Right
Shaft root dia.		∅8.4
Number of circuit		1.6×2
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF8
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK8

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT1015-196R270C7	160	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	3300	6400
SRT1015-396R470C7	360	Ct7	396	400	470	±0.13	0.05	0.120	~0.020
SRT1015-196R270C10	160	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT1015-396R470C10	360	Ct10	396	400	470	±0.55	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT1020	Shaft dia. ∅10	Lead 20mm	Ct7&Ct10

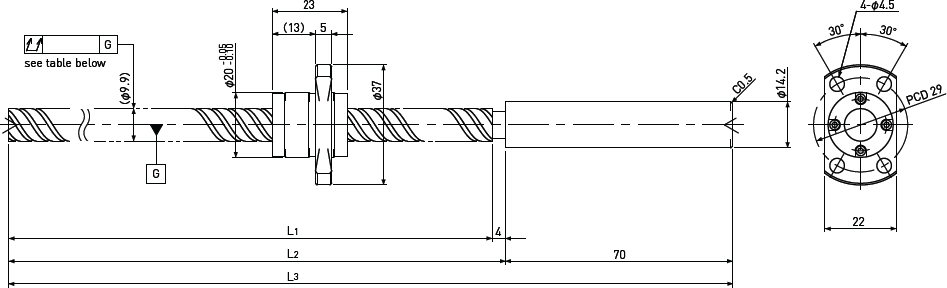

SRT Diagram 21A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.5875	A-type B-type C-type
Number of thread		4
Thread direction		Right
Shaft root dia.		∅8.7
Number of circuit		1.6×2
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF8
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK8

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT1020-196R270C7	170	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	2100	4000
SRT1020-396R470C7	370	Ct7	396	400	470	±0.13	0.05	0.120	~0.020
SRT1020-196R270C10	170	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT1020-396R470C10	370	Ct10	396	400	470	±0.55	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT1202	Shaft dia. ∅12	Lead 2mm	Ct7&Ct10

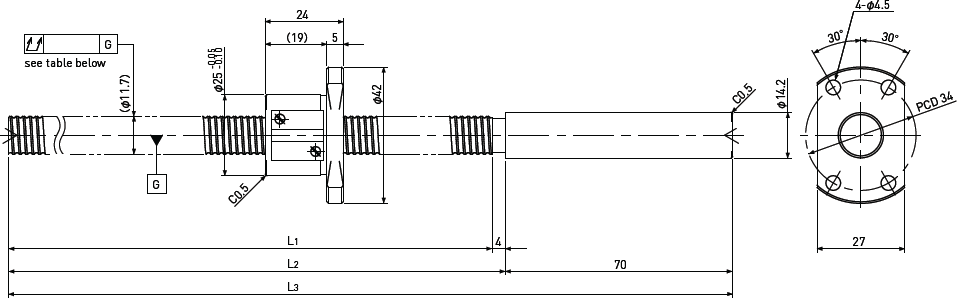

SRT Diagram 22A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.5875	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅10.6
Number of circuit		3.7×1
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF10
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK10

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT1202-196R270C7	170	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	3000	6400
SRT1202-396R470C7	370	Ct7	396	400	470	±0.13	0.05	0.080	~0.020
SRT1202-196R270C10	170	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT1202-396R470C10	370	Ct10	396	400	470	±0.55	0.21	0.160	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SRT1210	Shaft dia. ∅12	Lead 10mm	Ct7&Ct10

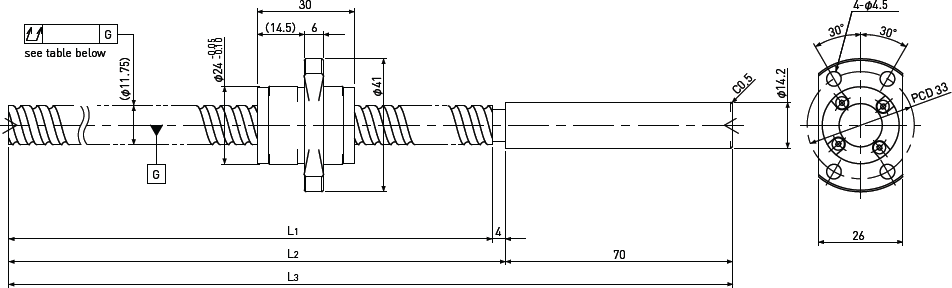

SRT Diagram 23A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅2.381	A-type B-type C-type
Number of thread		2
Thread direction		Right
Shaft root dia.		∅10.2
Number of circuit		1.7×2
Material	Shaft	SCM415H+SUS303
Material	Nut	SCM415H
Surface hardness		HRC58∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF10
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK10

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SRT1210-196R270C7	165	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	5100	9800
SRT1210-396R470C7	365	Ct7	396	400	470	±0.13	0.05	0.080	~0.020
SRT1210-196R270C10	165	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SRT1210-396R470C10	365	Ct10	396	400	470	±0.55	0.21	0.160	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SSRT0601	Stainless	Lead 1mm	Ct7&Ct10
SSRT0601	Shaft dia. ∅6	Lead 1mm	Ct7&Ct10

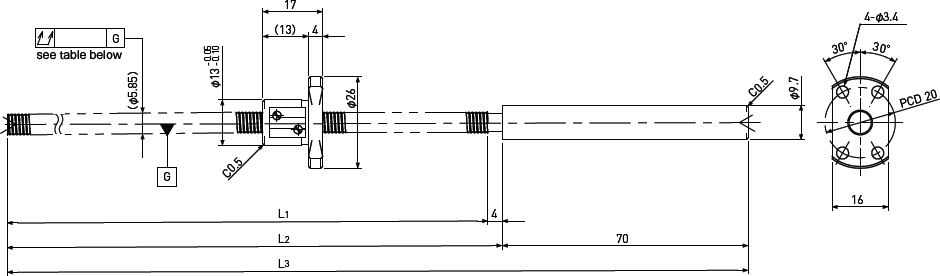

SRT Diagram 24A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅0.8	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅5.3
Number of circuit		3.7×1
Material	Shaft	SUS440C+SUS303
Material	Nut	SUS440C
Surface hardness		HRC55∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	SUP04-S
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK5

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SSRT0601-146R220C7	125	Ct7	146	150	220	±0.05	0.05	0.080	~0.020	-	560	900
SSRT0601-261R335C7	240	Ct7	261	265	335	±0.09	0.05	0.120	~0.020
SSRT0601-146R220C10	125	Ct10	146	150	220	±0.20	0.21	0.160	~0.050
SSRT0601-261R335C10	240	Ct10	261	265	335	±0.36	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SSRT0801	Stainless	Lead 1mm	Ct7&Ct10
SSRT0801	Shaft dia. ∅8	Lead 1mm	Ct7&Ct10

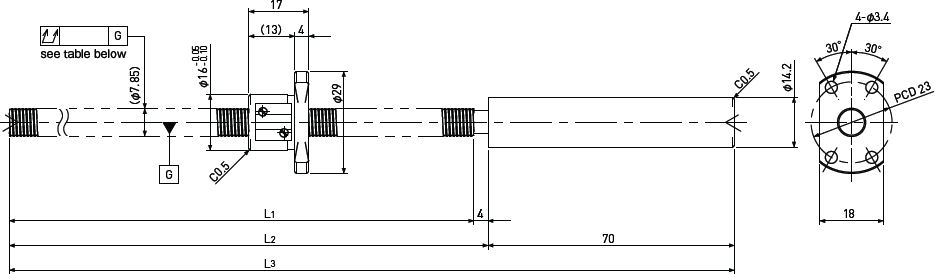

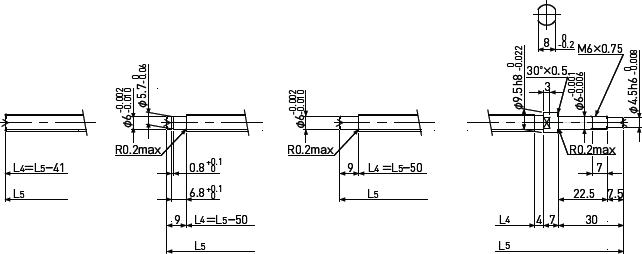

SRT Diagram 25A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅0.8	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅7.3
Number of circuit		3.7×1
Material	Shaft	SUS440C+SUS303
Material	Nut	SUS440C
Surface hardness		HRC55∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF6
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK6

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SSRT0801-196R270C7	175	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	630	1250
SSRT0801-356R430C7	335	Ct7	356	360	430	±0.12	0.05	0.120	~0.020
SSRT0801-196R270C10	175	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SSRT0801-356R430C10	335	Ct10	356	360	430	±0.49	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SSRT0802	Stainless	Lead 2mm	Ct7&Ct10
SSRT0802	Shaft dia. ∅8	Lead 2mm	Ct7&Ct10

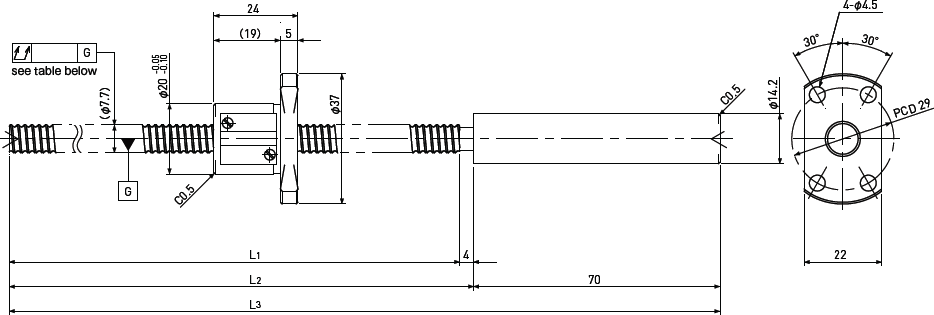

SRT Diagram 26A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.5875	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅6.6
Number of circuit		3.7×1
Material	Shaft	SUS440C+SUS303
Material	Nut	SUS440C
Surface hardness		HRC55∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF6
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK6

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SSRT0802-196R270C7	170	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	1950	3100
SSRT0802-356R430C7	330	Ct7	356	360	430	±0.12	0.05	0.120	~0.020
SSRT0802-196R270C10	170	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SSRT0802-356R430C10	330	Ct10	356	360	430	±0.49	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

Standard products in stock SRT series
SSRT1002	Stainless	Lead 2mm	Ct7&Ct10
SSRT1002	Shaft dia. ∅10	Lead 2mm	Ct7&Ct10

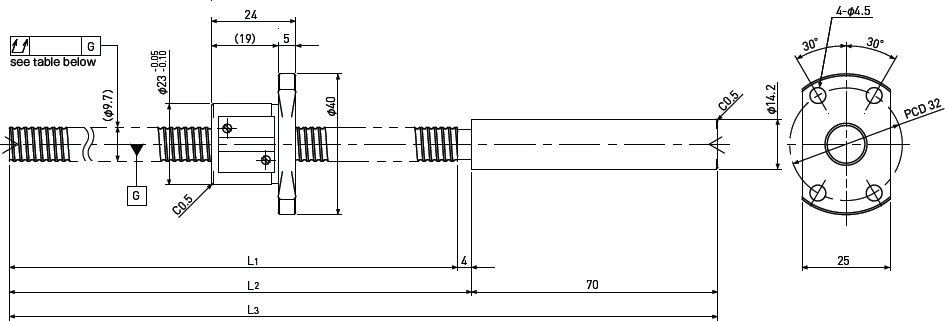

SRT Diagram 27A

Unit : mm
Ball Screw Specifications			End-journal profile	Supported-side	Fixed-side
Ball size		∅1.5875	A-type B-type C-type
Number of thread		1
Thread direction		Right
Shaft root dia.		∅8.6
Number of circuit		3.7×1
Material	Shaft	SUS440C+SUS303
Material	Nut	SUS440C
Surface hardness		HRC55∼ (Thread area)	L₄: Thread length after end-journal machining. L₅: Total length after end-journal machining.
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Supported-side:	EF8
Anti-rust treatment		Anti-rust oil	Support-unit Recommendation	Fixed-side:	EK8

Unit : mm
Ball Screw Model	Travel	Grade	Shaft length			Lead accuracy		Total Run-out ⌰	Axial play	Preload Torque Nm	Basic Load Rating N
Ball Screw Model	Travel	Grade	L₁	L₂	L₃	Travel deviation e_P	Variation V₃₀₀	Total Run-out ⌰	Axial play	Preload Torque Nm	Dynamic Ca	Static Coa
SSRT1002-196R270C7	170	Ct7	196	200	270	±0.06	0.05	0.080	~0.020	-	2200	4000
SSRT1002-396R470C7	370	Ct7	396	400	470	±0.13	0.05	0.120	~0.020
SSRT1002-196R270C10	170	Ct10	196	200	270	±0.27	0.21	0.160	~0.050
SSRT1002-396R470C10	370	Ct10	396	400	470	±0.55	0.21	0.240	~0.050

T: +44 (0)1386 421005F: +44 (0)1386 422441E: sales@abssac.co.ukW: www.abssac.co.uk

SRT / SSRT Flanged Nut Large Journal

SRT/SSRT seriesStandardized Rolled Ball Screws with Integrated end-journal

Features

Comparison with current model

Combination of Shaft nominal dia. & Lead

Accuracy Grade & Axial play

Material & Surface hardness

Lubrication

Model number notation

Fig. A-24 : Shaft end-journal profile

Fig. A-25 : Nut Flange direction

SRT0401

Shaft dia. ∅4

Lead 1mm

Ct7&Ct10

SRT0402

Shaft dia. ∅4

Lead 2mm

Ct7&Ct10

SRT0504

Shaft dia. ∅5

Lead 4mm

Ct7&Ct10

SRT0601

Shaft dia. ∅6

Lead 1mm

Ct7&Ct10

SRT0602

Shaft dia. ∅6

Lead 2mm

Ct7&Ct10

SRT0606

Shaft dia. ∅6

Lead 6mm

Ct7&Ct10

SRT0610

Shaft dia. ∅6

Lead 10mm

Ct7&Ct10

SRT0801

Shaft dia. ∅8

Lead 1mm

Ct7&Ct10

SRT0802

Shaft dia. ∅8

Lead 2mm

Ct7&Ct10

SRT0802.5

Shaft dia. ∅8

Lead 2.5mm

Ct7&Ct10

SRT0805

Shaft dia. ∅8

Lead 5mm

Ct7&Ct10

SRT0808

Shaft dia. ∅8

Lead 8mm

Ct7&Ct10

SRT0812

Shaft dia. ∅8

Lead 12mm

Ct7&Ct10

SRT1002

Shaft dia. ∅10

Lead 2mm

Ct7&Ct10

SRT1005

Shaft dia. ∅10

Lead 5mm

Ct7&Ct10

SRT1010

Shaft dia. ∅10

Lead 10mm

Ct7&Ct10

SRT1015

Shaft dia. ∅10

Lead 15mm

Ct7&Ct10

SRT1020

SRT/SSRT series
Standardized Rolled Ball Screws with Integrated end-journal
