Rolled Ball Screws

Sleeve type Single Nut

Backlash type

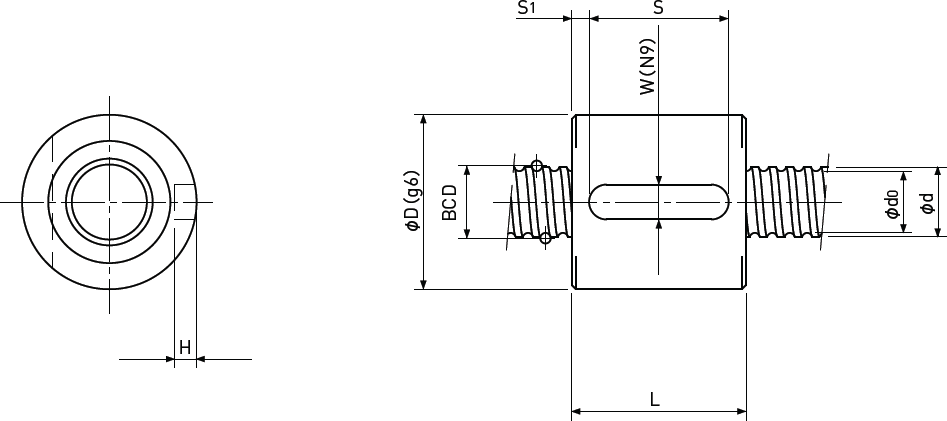

Ballscrew Sleeve type Single Nut Diagram 1

Unit : mm
Ball Nut
Model number
Shaft
nominal
dia.
d
Lead Ball size BCD Lead
angle
Root dia.
d0
Number of
Circuit
Basic Load Rating
N
Nut Rigidity
N/µm
Dynamic
Ca
Static
Coa
BSR 0401 4 1 0.8 4.15 4°23' 3.3 3.7x1 560 790 54
BSR 0402 4 2 0.8 4.15 8°43' 3.3 2.7x1 420 570 39
BSR 0504 5 4 0.8 5.15 13°53' 4.3 2.7x1 470 720 47
BSR 0601 ** 6 1 0.8 6.15 2°58' 5.3 3.7x1 680 1200 75
BSR 0602 6 2 1 6.2 5°52' 5.1 2.7x1 750 1200 58
BSR 0801 ** 8 1 0.8 8.15 2°15' 7.3 3.7x1 780 1650 95
BSR 0802 ** 8 2 1.5875 8.3 4°23' 6.6 3.7x1 2400 4100 111
BSR 0802.5 8 2.5 1.5875 8 5°41' 6.3 2.7x1 1850 3000 80
BSR 0805 8 5 1.5875 8.3 10°51' 6.6 2.7x1 1850 3000 82
Ball Nut
Model number
Nut dimension
D L W H S S1
BSR 0401 11 14 3 1.8 8 3
BSR 0402 11 16 3 1.8 8 4
BSR 0504 12 22 3 1.8 12 5
BSR 0601 ** 13 14 3 1.8 10 2
BSR 0602 15 15 3 1.8 10 2.5
BSR 0801 ** 16 14 3 1.8 10 2
BSR 0802 ** 20 20 4 2.5 16 2
BSR 0802.5 16 16 3 1.8 8 4
BSR 0805 18 28 4 2.5 20 4
Note 1)
All models are Right-hand screw.
Note 2)
The diameter of the Screw Shaft both ends must be less than the Screw Shaft Root diameter,
because of productlon and Nut assembly reason. If bigger end-journal than Shaft diameter is required, please consult ABSSAC.
Note 3)
Ball Nut dimension is without seal at the both ends. All type of Ball Nuts cannot equip with seals.
Note 4)
Rigidity
The Rigidity values shown in the table are theoretical values calculated from the amount of Elastic Displacement
under the Axial load equivalent to 30% of the Basic Dynamic Load Rating Ca.
Note 5)
Stainless Rolled Ball Screw
Stainless Rolled Ball Screw is available for Ball Nut Model Number marked **.
T: +44 (0)1386 421005 F: +44 (0)1386 422441 E: sales@abssac.co.uk W: www.abssac.co.uk
ABSSAC
Rolled Ball Screws

Sleeve type Single Nut

Backlash type

Ballscrew Sleeve type Single Nut Diagram 1

Unit : mm
Ball Nut
Model number
Shaft
nominal
dia.
d
Lead Ball size BCD Lead
angle
Root dia.
d0
Number of
Circuit
Basic Load Rating
N
Nut Rigidity
N/µm
Dynamic
Ca
Static
Coa
BSR 1002 ** 10 2 1.5875 10.3 3°32' 8.6 3.7x1 2700 5300 134
BSR 1004 10 4 2 10.3 7°03' 8.2 2.7x1 3000 5200 104
BSR 1005 10 5 2 10.3 8°47' 8.2 2.7x1 3000 5200 103
BSR 1006 10 6 2 10.3 10°30' 8.2 2.7x1 3000 5000 102
BSR 1202 12 2 1.5875 12.3 2°58' 10.6 3.7x1 3000 6400 156
BSR 1402 14 2 1.5875 14.3 2°33' 12.6 3.7x1 3200 7500 176
BSR 1404 14 4 2.381 14.3 5°05' 11.8 3.7x1 5700 11600 187
Ball Nut
Model number
Nut dimension
D L W H S S1
BSR 1002 ** 23 20 5 3 16 2.5
BSR 1004 24 26 5 3 20 3
BSR 1005 23 26 5 3 16 5
BSR 1006 26 31 5 3 20 5.5
BSR 1202 25 20 5 3 16 2
BSR 1402 26 20 5 3 16 2
BSR 1404 30 31 5 3 25 3
Note 1)
All models are Right-hand screw.
Note 2)
The diameter of the Screw Shaft both ends must be less than the Screw Shaft Root diameter,
because of productlon and Nut assembly reason. If bigger end-journal than Shaft diameter is required, please consult ABSSAC.
Note 3)
Ball Nut dimension is without seal at the both ends. All type of Ball Nuts cannot equip with seals.
Note 4)
Rigidity
The Rigidity values shown in the table are theoretical values calculated from the amount of Elastic Displacement
under the Axial load equivalent to 30% of the Basic Dynamic Load Rating Ca.
Note 5)
Stainless Rolled Ball Screw
Stainless Rolled Ball Screw is available for Ball Nut Model Number marked **.
T: +44 (0)1386 421005 F: +44 (0)1386 422441 E: sales@abssac.co.uk W: www.abssac.co.uk
