ABSSAC offers an Industrial ball screw range, termed the Transport range, that effectively converts high torque rotary input into precise high load linear movement. The Transport ball screw ranges can be delivered cut to length and if required, machined ready to fit into the required support bearing mounts. Utilising the recirculating ball bearing nut technology as the base of the product, the Industrial class ball screws encompass screw diameters from 12mm up to 80mm as standard. In many cases multiple ball circuits, per ball nut, are employed to achieve greater load capacities making the product suitable for many types of application.
As the name suggests, the range is aimed at the more industrial type application with dynamic load capacities from 900 to 13449 kgf being catered for. Whatever the load, it will be delivered with both high efficiency and low drive torque. Stocked screw lengths of up to 4500mm are available up to 32mm diameter and screw lengths up to 5600mm long for screws above 40mm in diameter.
ABSSAC is often asked about the life expectancy of the ball screw products it supplies within applications. Whilst this can sometimes be a difficult thing to accurately calculate, as parameters within an application can change during its life, it can nevertheless be achieved. During a recent design brief with one of our packaging machinery customers, a new range of machines were being designed with exceptionally long MTBS. (mean time between service). In fact, the machines unique selling point was to be its reliability and long service intervals. The ball screw to be used would also provide the primary linear movement required within the design, so was a critical part of the design guarantee.
Typically our Transport ball screws are rated for millions of mm’s of travel at the rated dynamic load. This is the load at which 90% of a group of identical ball screws will run without flaking for their lifetime. However, they will travel farther than this at lower limits. These load-life relationships are analogous to the B10 rating common in the ball bearing industry. The relationship of load to life is an inverse cube relation. For example, by reducing the customers load by half would increase the life by eight times. (Conversely doubling the load would decrease life by 1/8). Armed with this information ABSSAC’s customer then made every attempt to reduce the load within the design, which after a great deal of design change was finally achieved. The end result was a ball screw assembly with the life expectancy required by the customer.
CAD files on request
Available with diameters ranging from 16mm to 80mm, and leads from 1mm to 20mm.
Available with diameters ranging from 16mm to 80mm, and leads of 5mm or 10mm.
Available with diameters ranging from 16mm to 63mm, and leads of 16mm to 63mm.
Available with diameters ranging from 12mm to 63mm, and leads of 10mm to 40mm.
Available with diameters ranging from 12mm to 80mm, and leads of 10mm to 40mm.
With over 40 years of application experience, our knowledgeable staff are always available. Please contact us on 01386 421 005
We will be more than happy to help, so please call today!
ABSSAC can supply Transport Ball Screws in the following sizes. Ball Screw shaft lengths are available at the maximum lengths listed below
THREAD DETAILS | NUT TYPE | MAXIMUM SHAFT LENGTH | |||||
---|---|---|---|---|---|---|---|
DIA mm | PITCH mm | FSI | FSR | FSC | FSH | RSB | mm |
10 | 4 | • | 1000 | ||||
12 | 4 | • | 1200 | ||||
12 | 5 | • | 1000 | ||||
16 | 5 | • | • | 3000 | |||
16 | 16 | • | 3000 | ||||
20 | 5 | • | • | 3000 | |||
20 | 10 | • | 3000 | ||||
20 | 20 | • | 3000 | ||||
25 | 5 | • | • | • | 4500 | ||
25 | 10 | • | • | 4500 | |||
25 | 25 | • | 4000 | ||||
32 | 5 | • | • | • | 4500 | ||
32 | 10 | • | • | • | 4500 | ||
32 | 20 | • | 4000 | ||||
32 | 32 | • | 4500 | ||||
38 | 40 | • | 4500 | ||||
40 | 5 | • | • | 5600 | |||
40 | 10 | • | • | • | 5600 | ||
40 | 20 | • | • | 5600 | |||
40 | 40 | • | • | 4000 | |||
50 | 5 | • | 5600 | ||||
50 | 10 | • | • | • | 5600 | ||
50 | 40 | • | 5000 | ||||
50 | 50 | • | 5600 | ||||
63 | 10 | • | • | • | • | 5600 | |
63 | 20 | • | • | 5600 | |||
80 | 10 | • | • | • | 5600 | ||
80 | 20 | • | • | 5600 |

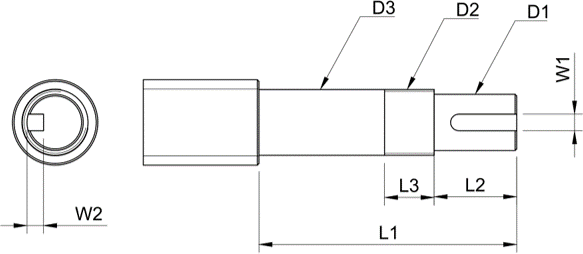

Our machining capability gives you a high journal concentricity product and can be applied to all screws regardless of diameter. Let us work together to reduce your scrap rates and supply ball solutions that fit your application every time. We can work directly from your dimensional drawings or if they do not exist, why not supply us with a physical sample for us to copy. Although all types of end machine detail can be supplied we offer a very cost effective basic end journal machining that fits our range of support bearings (see example diagrams below)
To Suit Bearing Type | Ballscrew Size | D1 | D2 | D3 | L1 | L2 | L3 | W1 | W2 |
---|---|---|---|---|---|---|---|---|---|
BK/FK 10 | 16 | 8.0 | M10X1.0 | 10.0 | 55.0 | 15.0 | 12.0 | 2.0 | 2.8 |
BK/FK 12 | 16/20 | 10.0 | M12X1.0 | 12.0 | 39.0 | 20.0 | 12.0 | 3.0 | 3.2 |
BK/FK 15 | 20 | 12.0 | M15X1.0 | 15.0 | 67.0 | 25.0 | 12.0 | 4.0 | 3.5 |
BK/FK 17 | 20/25 | 15.0 | M17X1.0 | 17.0 | 77.0 | 23.0 | 14.0 | 5.0 | 4.5 |
BK/FK 20 | 25 | 16.0 | M20X1.0 | 20.0 | 88.0 | 34.0 | 14.0 | 5.0 | 5.0 |
BK/FK 25 | 32 | 20.0 | M25X1.5 | 25.0 | 103.0 | 39.0 | 16.0 | 5.0 | 7.0 |
BK/FK 30 | 40 | 25.0 | M30X1.5 | 30.0 | 114.0 | 46.0 | 16.0 | 8.0 | 8.5 |
BK/FK 40 | 50 | 32.0 | M40X1.5 | 40.0 | 139.0 | 55.0 | 18.0 | 8.0 | 12.0 |
Available with diameters ranging from 16mm to 80mm, and leads from 1mm to 20mm.

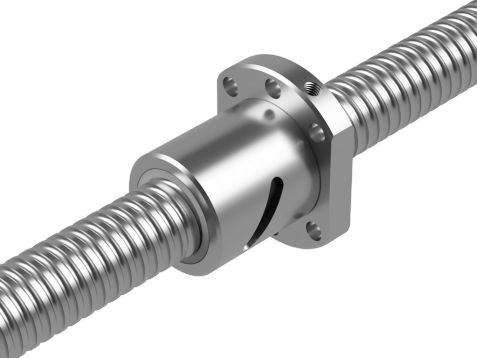

The FSI flanged ball screw range is aimed at industrial type applications, with dynamic load capacities from 123 to 13449 kgf being catered for. Whatever the load, it will be delivered with both high efficiency and low drive torque. Stocked screw lengths of up to 4500mm are available up to 32mm diameter and screw lengths up to 5600mm long for screws above 40mm in diameter.
Model | Size | Ball Dia. | Circuits | Dynamic Load 1x106 revs C (kgf) | Static Load Co (kgf) | D | D4 | Flange Hole No. | D5 | D6 | H1 | L1 | L2 | L7 | L11 | M-Oil Hole | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal Dia. | Lead | ||||||||||||||||
R16-1T4-FSI | 16 | 1 | 0.8 | 4 | 123 | 411 | 22 | 31 | 4 | 5.5 | 40 | 26 | 10 | 23 | 6 | - | - |
R16-2.5T4-FSI | 16 | 2.5 | 2 | 4 | 409 | 873 | 25 | 35 | 4 | 5.5 | 44 | 29 | 10 | 44 | 10 | 5 | M6X1 |
R16-5T3-FSI | 16 | 5 | 3.175 | 3 | 664 | 1195 | 28 | 38 | 6 | 5.5 | 48 | 40 | 10 | 40 | 10 | 5 | M6x1P |
R16-10T3-FSI | 16 | 10 | 3.175 | 3 | 621 | 1101 | 28 | 38 | 6 | 5.5 | 48 | 40 | 10 | 60 | 10 | 5 | M6X1 |
R20-5T4-FSI | 20 | 5 | 3.175 | 4 | 938 | 1993 | 36 | 47 | 6 | 6.6 | 58 | 44 | 10 | 52 | 10 | 5 | M6x1P |
R25-5T4-FSI | 25 | 5 | 3.175 | 4 | 1127 | 2776 | 40 | 51 | 6 | 6.6 | 62 | 48 | 12 | 52 | 10 | 5 | M6x1P |
R25-10T3-FSI | 10 | 4.763 | 3 | 1430 | 2913 | 40 | 51 | 6 | 6.6 | 62 | 48 | 16 | 65 | 10 | 5 | M6x1P | |
R32-5T6-FSI | 32 | 5 | 3.175 | 6 | 1829 | 5544 | 50 | 65 | 6 | 9 | 80 | 62 | 10 | 66 | 12 | 6 | M6x1P |
R32-10T4-FSI | 10 | 6.35 | 4 | 2899 | 6404 | 50 | 65 | 6 | 9 | 80 | 62 | 16 | 85 | 12 | 6 | M6x1P | |
R40-5T6-FSI | 40 | 5 | 3.175 | 6 | 2003 | 6931 | 63 | 78 | 8 | 9 | 93 | 70 | 10 | 66 | 14 | 7 | M8x1P |
R40-10T4-FSI | 10 | 6.35 | 4 | 3396 | 8488 | 63 | 78 | 8 | 9 | 93 | 70 | 16 | 87 | 14 | 7 | M8x1P | |
R40-20T2-FSI | 20 | 6.35 | 2 | 1870 | 4244 | 63 | 78 | 8 | 9 | 93 | 70 | 20 | 88 | 14 | 7 | M8 X1P | |
R50-5T6-FSI | 50 | 5 | 3.175 | 6 | 2213 | 8909 | 75 | 93 | 8 | 11 | 110 | 85 | 10 | 70 | 16 | 8 | M8x1P |
R50-10T6-FSI | 10 | 6.35 | 6 | 5526 | 16668 | 75 | 93 | 8 | 11 | 110 | 85 | 16 | 112 | 16 | 8 | M8x1P | |
R50-20T4-FSI | 50 | 20 | 9.525 | 4 | 8306 | 21608 | 78 | 93 | 8 | 11 | 110 | 85 | 16 | 150 | 16 | 8 | M8X1 |
R63-10T6-FSI | 63 | 10 | 6.35 | 6 | 6192 | 21409 | 90 | 108 | 8 | 11 | 125 | 95 | 16 | 114 | 18 | 9 | M8 X 1P |
R63-20T5-FSI | 63 | 20 | 9.525 | 5 | 11536 | 35194 | 90 | 108 | 8 | 11 | 125 | 95 | 16 | 160 | 20 | 10 | M8 X 1P |
R80-10T6-FSI | 80 | 10 | 6.35 | 6 | 7093 | 28508 | 105 | 125 | 8 | 13.5 | 145 | 110 | 20 | 114 | 20 | 10 | M8 X 1P |
R80-20T5-FSI | 20 | 9.525 | 5 | 13449 | 47447 | 125 | 145 | 8 | 13.5 | 165 | 130 | 25 | 175 | 25 | 12 | M8 X 1P |
Available with diameters ranging from 16mm to 80mm, and leads of 5mm or 10mm.

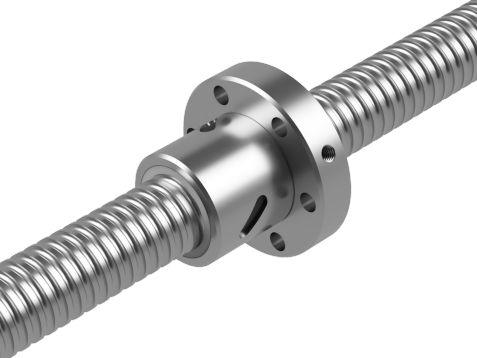

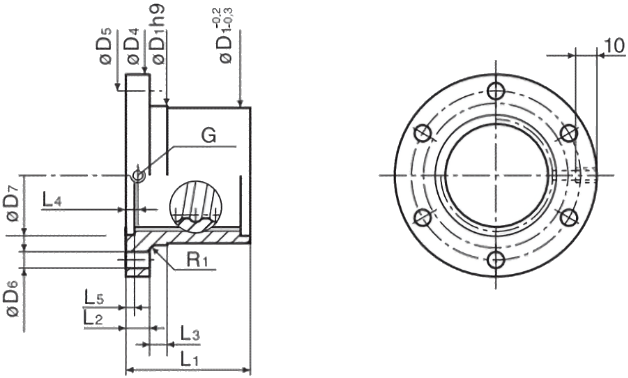

The FSR round flanged ball screw range is aimed at industrial type applications, with dynamic load capacities from 265 to 6063 kgf being catered for. Whatever the load, it will be delivered with both high efficiency and low drive torque. Stocked screw lengths of up to 4500mm are available up to 32mm diameter and screw lengths up to 5600mm long for screws above 40mm in diameter.
Model | Size | Circuits | Dynamic Load 1x106 revs C (kgf) | Static Load Co (kgf) | D1 | D4 | PCD D5 | D6 | D7 | L1 | L2 | L3 | L4 | L5 | G | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal Dia. | Lead | |||||||||||||||
R12-5T3-FSR | 12 | 5 | 3 | 265 | 461 | 20 | 40 | 32 | 5.0 | 18 | 36 | 10 | 12 | 6.0 | 3 | M6 |
R16-5T3-FSR | 16 | 664 | 1195 | 28 | 48 | 38 | 5.5 | 22 | 44 | 12 | 10 | 6.0 | 3 | M6x1 | ||
R20-5T3-FSR | 20 | 733 | 1495 | 32 | 55 | 45 | 7.0 | 26 | 44 | 12 | 8 | 6.0 | 3 | M6x1 | ||
R25-5T3-FSR | 25 | 879 | 2085 | 38 | 62 | 50 | 6.6 | 31 | 46 | 14 | 8 | 7.0 | 3 | M6x1 | ||
R25-10T3-FSR | 10 | 1430 | 2913 | 45 | 72 | 57 | 6.6 | 31 | 65 | 10 | 15 | 5.0 | 3 | M6x1 | ||
R32-5T3-FSR | 32 | 5 | 1008 | 2772 | 45 | 70 | 58 | 7.0 | 38 | 59 | 16 | 10 | 8.0 | 3 | M6x1 | |
R32-10T3-FSR | 10 | 2264 | 4803 | 53 | 80 | 68 | 7.0 | 38 | 73 | 16 | 10 | 8.0 | 3 | M6x1 | ||
R40-5T4-FSR | 40 | 5 | 4 | 1414 | 4621 | 53 | 80 | 68 | 7.0 | 46 | 59 | 16 | 10 | 8.0 | 3 | M8x1 |
R40-10T4-FSR | 10 | 3396 | 8488 | 63 | 95 | 78 | 9.0 | 52 | 73 | 15 | 10 | 7.5 | 5 | M8x1 | ||
R50-10T3-FSR | 50 | 3 | 3045 | 8334 | 72 | 110 | 90 | 11.0 | 62 | 97 | 18 | 16 | 9.0 | 5 | M8x1 | |
R63-10T5-FSR | 63 | 5 | 5293 | 17841 | 85 | 125 | 105 | 11.0 | 74 | 99 | 20 | 10 | 10.0 | 5 | M8x1 | |
R80-10T5-FSR | 80 | 6063 | 23757 | 105 | 145 | 125 | 14.0 | 93 | 101 | 20 | 10 | 10.0 | 5 | M8x1 |
Available with diameters ranging from 12mm to 80mm, and leads of 10mm to 40mm.
The FSC flanged ball screw range is aimed at industrial type applications, with dynamic load capacities from 900 to 13620 kgf being catered for. Whatever the load, it will be delivered with both high efficiency and low drive torque. Stocked screw lengths of up to 4500mm are available up to 32mm diameter and screw lengths up to 5600mm long for screws above 40mm in diameter.
Model | Size | Ball Dia. | Circuits | Dynamic Load 1x106 revs C (kgf) | Static Load Co (kgf) | D | D4 | Flange Hole No. | D5 | D6 | H1 | L1 | L2 | L7 | L11 | M-Oil Hole | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal Dia. | Lead | ||||||||||||||||
R16-10K3-FSC | 16 | 10 | 3.184 | 3 | 900 | 1860 | 34 | 45 | 6 | 6.0 | 57 | 43 | 10 | 44 | 10 | 5 | M6x1 |
R20-10K3-FSC | 20 | 3.174 | 991 | 2268 | 36 | 47 | 6 | 6.6 | 58 | 44 | 16 | 48 | 12 | 6 | M6x1 | ||
R20-20K2-FSC | 20 | 20 | 2 | 690 | 1560 | 36 | 47 | 6 | 6.6 | 58 | 44 | 10 | 57 | 10 | 5 | M6x1 | |
R32-20K3-FSC | 32 | 6.35 | 3 | 3260 | 7998 | 62 | 77 | 6 | 9.0 | 92 | 74 | 20 | 87 | 12 | 6 | M6x1 | |
R40-10K4-FSC | 40 | 10 | 4 | 4660 | 13120 | 70 | 85 | 8 | 9.0 | 100 | 75 | 20 | 73 | 14 | 7 | M8x1 | |
R40-40K2-FSC | 40 | 2 | 2344 | 5953 | 70 | 85 | 8 | 9.0 | 100 | 75 | 25 | 102 | 14 | 7 | M8x1 | ||
R50-16K6-FSC | 50 | 16 | 6 | 7430 | 25270 | 75 | 93 | 8 | 7.0 | 110 | 85 | 25 | 128 | 18 | 9 | M8x1 | |
R50-40K3-FSC | 40 | 3 | 3950 | 12370 | 82 | 100 | 8 | 7.0 | 118 | 92 | 25 | 145 | 16 | 8 | M8x1 | ||
R80-20K5-FSC | 80 | 20 | 9.525 | 5 | 13620 | 51080 | 145 | 165 | 8 | 9.0 | 185 | 150 | 25 | 142 | 25 | 12.5 | M8x1 |
Available with diameters ranging from 16mm to 63mm, and leads of 16mm to 63mm.

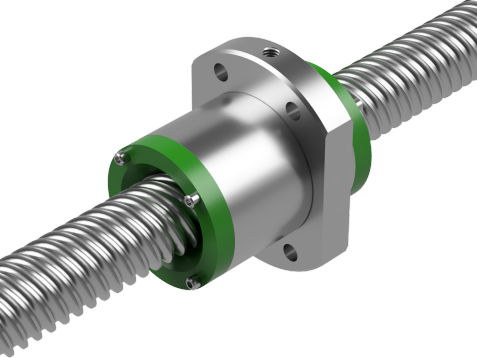

The FSH flanged ball screw range is aimed at industrial type applications, with dynamic load capacities from 780 to 12000 kgf being catered for. It’s multiple start threads make it ideal for applications where quick and precise linear motion is needed Whatever the load, it will be delivered with both high efficiency and low drive torque. Stocked screw lengths of up to 4500mm are available up to 32mm diameter and screw lengths up to 5600mm long for screws above 40mm in diameter.
Model | Size | Ball Dia. | Circuits | Dynamic Load 1x106 revs C (kgf) | Static Load Co (kgf) | Nut | Flange | Bolt | Fit | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal Dia. | Lead | D | L | F | T | BCD-E | H | X | S | M | |||||
R16-16S2-FSH-S | 16 | 16 | 3.175 | 1.8x2 | 780 | 1830 | 32 | 48 | 53 | 10 | 42 | 38 | 4.5 | 26 | 0 |
R16-16S2-FSH | 1.8x2 | 780 | 1830 | 33 | 48 | 58 | 10 | 45 | 38 | 6.6 | 26 | 0 | |||
R20-20S2-FSH | 20 | 20 | 1.8x2 | 870 | 2290 | 38 | 58 | 62 | 10 | 50 | 46 | 5.5 | 32.5 | 3 | |
R25-25S2-FSH | 25 | 25 | 3.969 | 1.8x4 | 1300 | 3600 | 47 | 67 | 74 | 12 | 60 | 56 | 6.6 | 39.5 | 3 |
R32-32S2-FSH | 32 | 32 | 4.763 | 1.8x2 | 1840 | 5450 | 58 | 85 | 92 | 15 | 74 | 68 | 9 | 48 | 0 |
R40-40S2-FSH | 40 | 40 | 6.35 | 1.8x2 | 3030 | 9220 | 72 | 102 | 114 | 17 | 93 | 84 | 11 | 60 | 0 |
R50-50S4-FSH | 50 | 50 | 7.938 | 1.8x2 | 7587 | 22410 | 90 | 125 | 135 | 20 | 112 | 104 | 14 | 83.5 | 0 |
R63-63S4-FSH | 63 | 63 | 9.525 | 1.8x4 | 12000 | 45700 | 110 | 146 | 153 | 24 | 132 | - | 13 | 87 | 0 |
Available with diameters ranging from 12mm to 63mm, and leads of 10mm to 40mm.

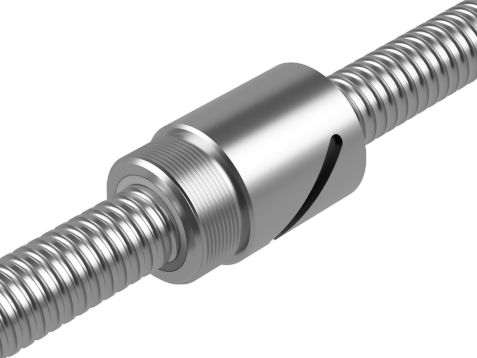

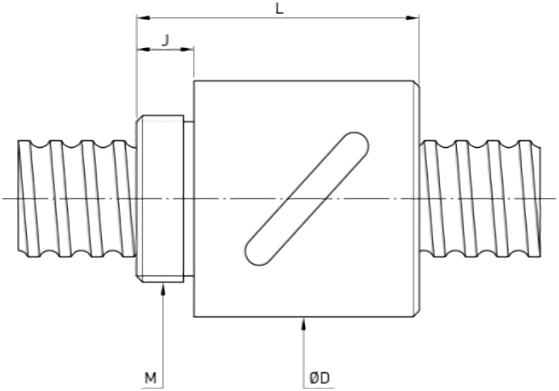

The RSB flanged ball screw range is aimed at industrial type applications, with dynamic load capacities from 344 to 7869 kgf being catered for. Whatever the load, it will be delivered with both high efficiency and low drive torque. Stocked screw lengths of up to 4500mm are available up to 32mm diameter and screw lengths up to 5600mm long for screws above 40mm in diameter.
Model | Size | Ball Dia. | Circuits | Dynamic Load 1x106 revs C (kgf) | Static Load Co (kgf) | Nut | Mounting Thread M | Mounting Thread Length J | ||
---|---|---|---|---|---|---|---|---|---|---|
Nominal Dia. | Lead | L | D | |||||||
R12-4B1-RSB | 12 | 4 | 2.381 | 2.5x1 | 344 | 574 | 34 | 28 | M25x1.5P | 10 |
R16-5B1-RSB | 16 | 5 | 3.175 | 2.5x1 | 679 | 1226 | 42 | 32.5 | M26x1.5P | 12 |
R20-5C1-RSB | 20 | 3.5x1 | 1001 | 2149 | 54 | 40 | M36x1.5P | 14 | ||
R25-5B2-RSB | 25 | 2.5x2 | 1534 | 3975 | 69 | 46 | M42x1.5P | 19 | ||
R32-5B2-RSB | 32 | 2.5x2 | 1702 | 5098 | 69 | 54 | M50x2P | 19 | ||
R32-10B2-RSB | 10 | 6.35 | 2.5x2 | 4379 | 10345 | 105 | 68 | M62x2P | 19 | |
R40-5B2-RSB | 40 | 5 | 3.175 | 2.5x2 | 1859 | 6354 | 69 | 76 | M62x2P | 19 |
R40-10B2-RSB | 10 | 6.35 | 2.5x2 | 4812 | 12732 | 110 | 76 | M70x2P | 24 | |
R50-10C2-RSB | 50 | 3.5x2 | 7146 | 22477 | 135 | 88 | M82x2P | 29 | ||
R63-10C2-RSB | 63 | 3.5x2 | 7869 | 28290 | 135 | 104 | M95x2P | 29 |

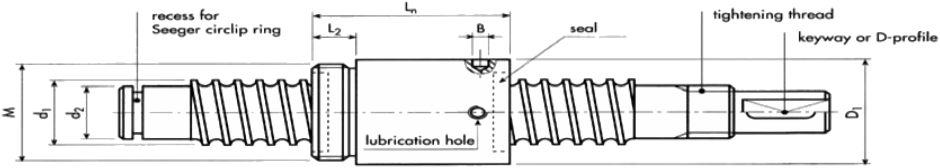

type TMR d0 x p Right-hand threads | Dimensions | Load rates | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
d1 | d3 | D1 0/-0.1 (mm) | M | L1 | L2 | i | B +0.5/0 (mm) | S | SA | T | C Dynamic (N) | C Static (N) | |||
6 x 2 | 5.7 | 4.6 | 16 | M12x1 | 22 | 8 | 1x3.5 | 2.5 | - | - | 0.06 | 1700 | 2300 | ||
8 x 2 | 8 | 6.5 | 18 | M14x1 | 24 | 8 | 1x3.5 | 2.5 | ∅2 | K | 0.06 | 2000 | 3200 | ||
8 x 2.5 | 8 | 6.6 | 17.5 | M15x1 | 24 | 8 | 1x3.5 | 2.5 | - | - | 0.06 | 2000 | 3200 | ||
10 x 2 | 9.7 | 8.2 | 19.5 | M17x1 | 22 | 7 | 1x3.5 | 2.5 | ∅2 | K | 0.06 | 2300 | 4000 | ||
10 x 3 | 9.9 | 7.8 | 21 | M18x1 | 29 | 9 | 1x3.5 | 3 | ∅2 | K | 0.06 | 2800 | 5000 | ||
10 x 10 | 9.8 | 7.9 | 23 | M18x1 | 35 | 9 | 2x1.5 | 3 | ∅4 | K | 0.06 | 2500 | 4500 | ||
12 x 4 | 12 | 9.8 | 26 | M20x1 | 34 | 10 | 1x3.5 | 2.5 | ∅4 | K | 0.07 | 5500 | 11000 | ||
12 x 5 | 12 | 9.5 | 26 | M20x1 | 37 | 8 | 1x3.5 | 3 | ∅4 | K | 0.07 | 6600 | 12000 | ||
12.7 x 12.7 | 13.1 | 10.3 | 29.5 | M25x1.5 | 50 | 12 | 2x1.5 | 3 | M5 | B | 0.07 | 8000 | 15500 | ||
14 x 2 | 14 | 12.5 | 26 | M25x1.5 | 32 | 10 | 2x2.5 | 3 | ∅2 | K | 0.06 | 4500 | 10000 | ||
14 x 4 | 14 | 11.5 | 29 | M22x1.5 | 38 | 10 | 1x3.5 | 3 | ∅4 | K | 0.07 | 8100 | 16000 | ||
16 x 2 | 16 | 14.5 | 30 | M26x1.5 | 28 | 12 | 1x2.5 | 3.5 | ∅2 | K | 0.06 | 2500 | 5500 | ||
16 x 5 | 15.7 | 13 | 32 | M26x1.5 | 47 | 12 | 1x3.5 | 4 | M5 | K | 0.07 | 12000 | 25000 | ||
16 x 10 | 15.7 | 13 | 32 | M26x1.5 | 52 | 12 | 1x2.5 | 4 | ∅4 | K | 0.07 | 8500 | 12500 | ||
20 x 10 | 19.5 | 16.5 | 38 | M35x1.5 | 58 | 19 | 2x2.5 | 4 | ∅4 | B | 0.07 | 21000 | 51000 | ||
25 x 10 | 24.8 | 21.8 | 43 | M40x1.5 | 58 | 19 | 2x2.5 | 4 | ∅4 | B | 0.07 | 21000 | 54000 | ||
25 x 25 | 24.5 | 21.2 | 44 | M40x1.5 | 72 | 20 | 2x1.5 | 4 | ∅4 | B | 0.08 | 10000 | 24000 | ||
32 x 10 | 31.6 | 28.4 | 52 | M48x1.5 | 62 | 19 | 2x1.5 | 4 | ∅4 | B | 0.07 | 20000 | 55000 |
ALL TYPES FROM SIZE 10 TO SIZE 40 FROM STOCK.
With paired precision a/c bearings
for drive end mounting
With single row radial bearing for
non drive end mounting
With paired precision a/c bearings
for drive end mounting
With single row radial bearing for
non drive end mounting
SCREW ENDS MACHINED TO SUIT THESE AND OTHER BEARING TYPES.
ALL TYPES OF MACHINED SCREW END FEATURES AVAILABLE.
Please enquire for dimensional and performance information.
Width Sizes 15 - 65mm
Single Lengths up to 4000mm
Flange Mount & Sq.Mount with Dust Proofing
4 - Row Bearing Contact for Heavy & Super Heavy Duty
Zero, Light &mean Pre-Load
Horizontal and Vertical Operation
Ideal Companion to Power Lead
Screws & transport Ball Screws
Name | Company | ||||
Address | |||||
Tel | Fax | E-Mail | |||
OPERATING LOADS | |||||
Normal operating loadKilo/lbs | |||||
Load is in tension | Load is in compression | Load is in both | |||
Load is constant | Load is variable | ||||
(If load is variable submit load curve diagram.) | |||||
Maximum static load in tensionKilo/lbs | |||||
Maximum static load in compressionKilo/lbs | |||||
Sideloads if any | Overturning moment (cantilever loads) | ||||
Describe | |||||
DUTY CYCLE | |||||
Continuous operation | Intermittent operation | Variable | |||
Time under dynamic load | Time at rest | ||||
Describe operation | |||||
METHOD OF OPERATION | |||||
Screw will be driven | Nut will be driven | ||||
The force will be applied to the nut to rotate the screw (back driven screw) | |||||
Assembly will be lubricated | Type of lube | ||||
Please ask our technical staff for recommendations for the best lubricant for your application. | |||||
SPEED AND TRAVEL RATE | |||||
Rate of travel described in inches per minute | |||||
Input RPM at screw or nut | |||||
Amount of torque available | |||||
TRAVEL LENGTH AND SUPPORTS | ||
What is the unsupported screw length between bearingsin/mm | ||
Does the nut travel the full length of the screwin/mm | ||
If not, over what area does the nut travel | ||
Is the screw operated in a vertical | Horizontal | Other, please state |
What type of end supports are you using? | ||
LEAD ACCURACY | ||
Standard accuracy (.015 in per ft max) / 0.3mm per 300mm) | ||
Precision rolled thread accuracy required (0.003 in per ft) / (.07mm per 300mm) | ||
Ground precision accuracy required (.0005 in per ft) / (.01mm per 300mm) | ||
Better than the above required? Please state 0.0mm / 300mm | ||
SCREW SIZE | ||
Standard backlash OK (up to .007in) / (.1778mm) | ||
Reduced backlash required (.002 in max) / (.0508mm) | ||
Zero backlash required | ||
ENVIRONMENT | ||
Will operate at normal room temperature | Will operate in very dirty / dusty conditions | |
Will operate at very high temperatures | Will operate where metal chips are present | |
Will operate at very low temperatures | Will operate in corrosive atmosphere | |
STRAIGHTNESS | ||
Standard straightness OK (.01in per ft) 0.254mm / 300mm | ||
Special straightness required (.002in per ft) 0.0508mm / 300mm | ||
Straightness better than 0.002in per ft required 0.0508mm / 300mm | ||
END MACHINING | ||
If you want to order the screws with the ends already machined to your specifications, submit a sketch or drawing with details and tolerances required. | ||
QUOTATION INFORMATION | ||
Quantity desired | ||
Delivery schedule | ||
Please submit any additional data you feel would be helpful to us in selecting the proper screw size and in submitting your quotation. Attach drawings of screw and nut if available. Suggestions, help and advice is given in good faith but without responsibility. It remains the responsibility of the customer or end user to ensure that the product chosen meets their life, duty cycle and other performance criteria. |
"ABSSAC" is a registered trade mark 2375859
All rights are reserved.
The use of this catalogue is made available to you by Abssac Limited. The exclusive right to control the use of the copyright and trademarks on this site is controlled by Abssac Limited. These may not be copied, reproduced, published, distributed, modified or otherwise used in any form including electronic copying without the express permission of Abssac Limited. Abssac Limited has made all reasonable endeavor to ensure that the material on this site is accurate. You agree that Abssac Limited, nor any other person involved in creating or providing this catalogue shall be liable for any indirect or consequential damage arising from the use of any information contained in this catalogue.
The information contained in this catalogue is provided 'as is' without warranty of any kind, either expressed or implied. Abssac Limited assumes no responsibility for errors or omissions in this catalogue or other documents which are reference by or linked to this catalogue. This catalogue could include technical or other inaccuracies including typographical errors. Updates and changes are periodically added to the information herein; these changes will be incorporated in new editions of this catalogue. Abssac Limited may make improvements and/or changes in the product(s) or service(s) described in this publication at any time. You agree that the above terms represent the entire basis of the agreement between us, upon which you are permitted to enter this site and you agree that all relations between us are subject to the Law of England and Wales.
